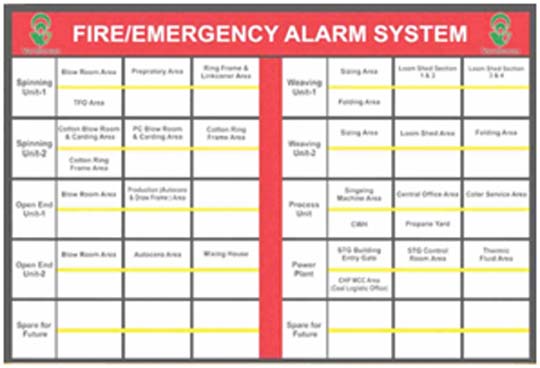

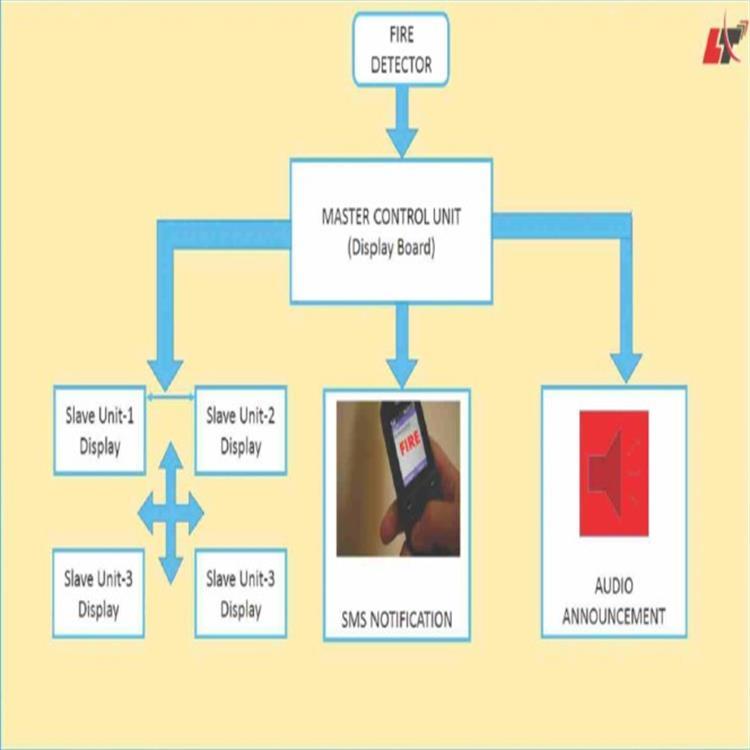

IFANS is microcontroller based electronic system which automatically fetches signals from the fire detector device and creates a broadcast of fire alarm.

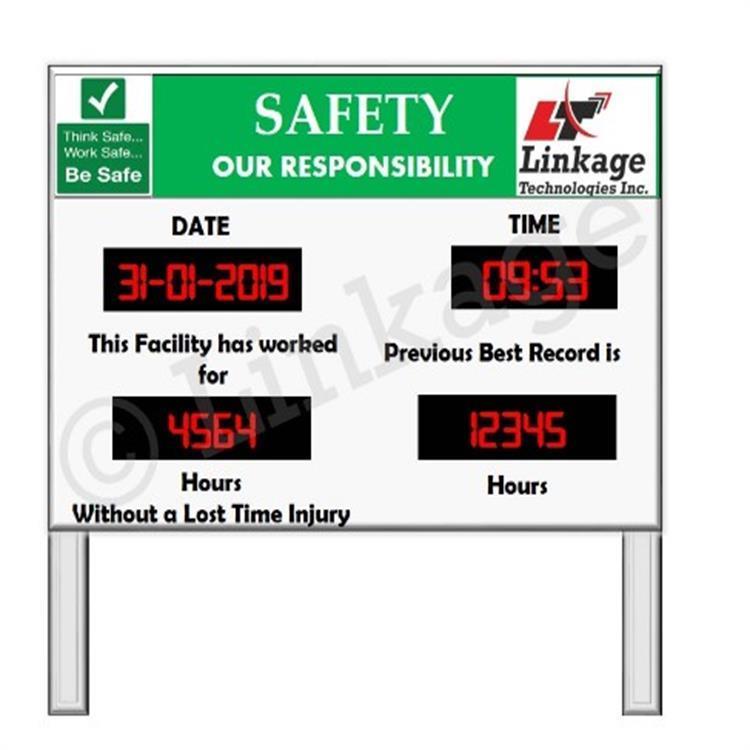

Employee Health & Safety display board is a real time GPS based public information system (PIS), which display the statistical data of various parameters of Employee Health Safety of any organization. As per the Indian labour laws the employer is required to maintain the Employee Health and Safety Data such as FAR, Man Hours

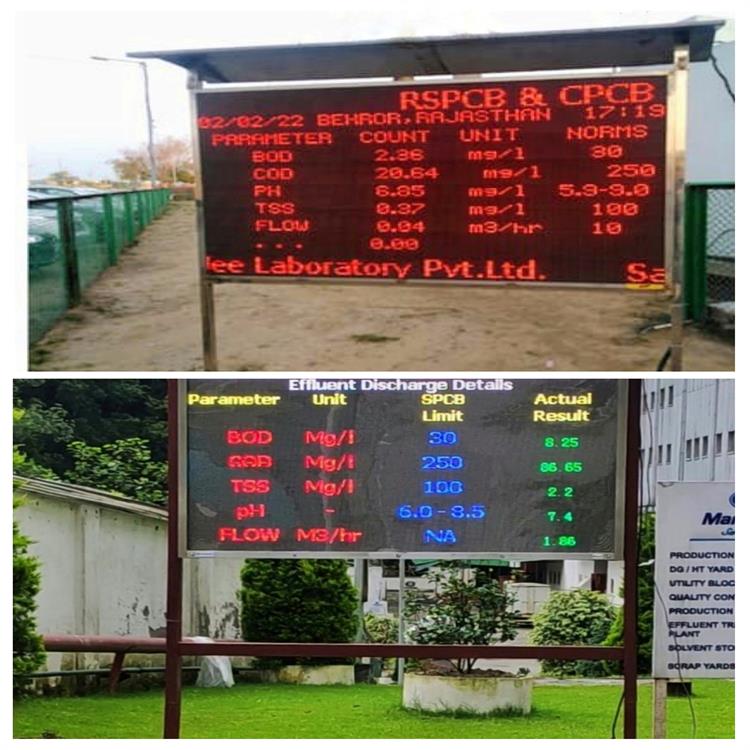

Linkage offers the latest environmental parameters monitoring display. Our display is widely being used by many industries to showcase effluent monitoring and legal compliance. MANDATORY COMPLINACE AS PER NGT ORDER AND CPCB GUIDELINES.
***Hon'ble NGT orders dated 26.08.2019 in O.A no. 804/2017, CPCB letter No. B-29016-NGT/C-19/2019/WM-II/Div./7342-7382 dated 07.10.2019***

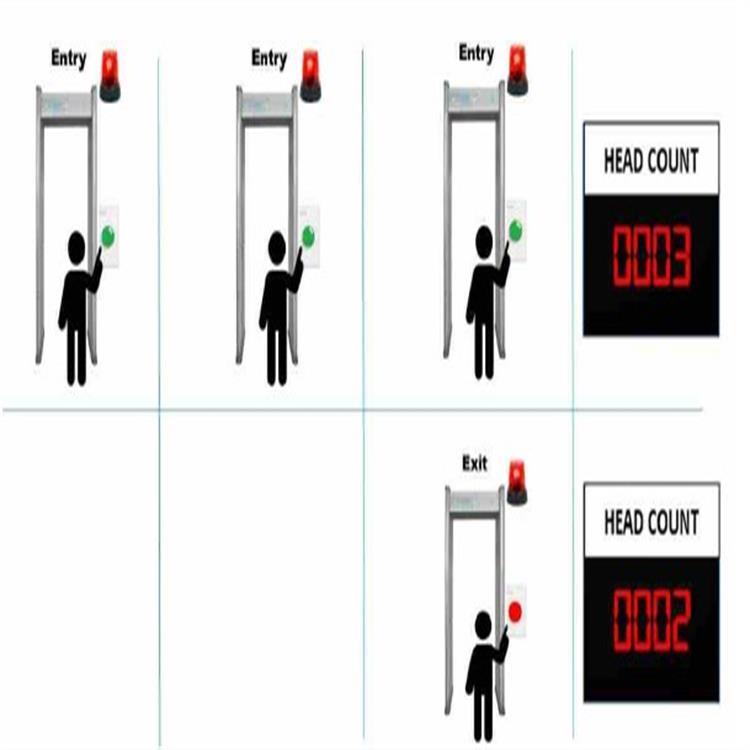

LT’s Integrated manual Entry / Exit interface is designed for our industrial clients for keeping a track of entry and exit of employees. The system works on the simple logic of manual acknowledgment on entry and exit via pressing a button.
The LED display unit comprises of real time GPS clock(optional)

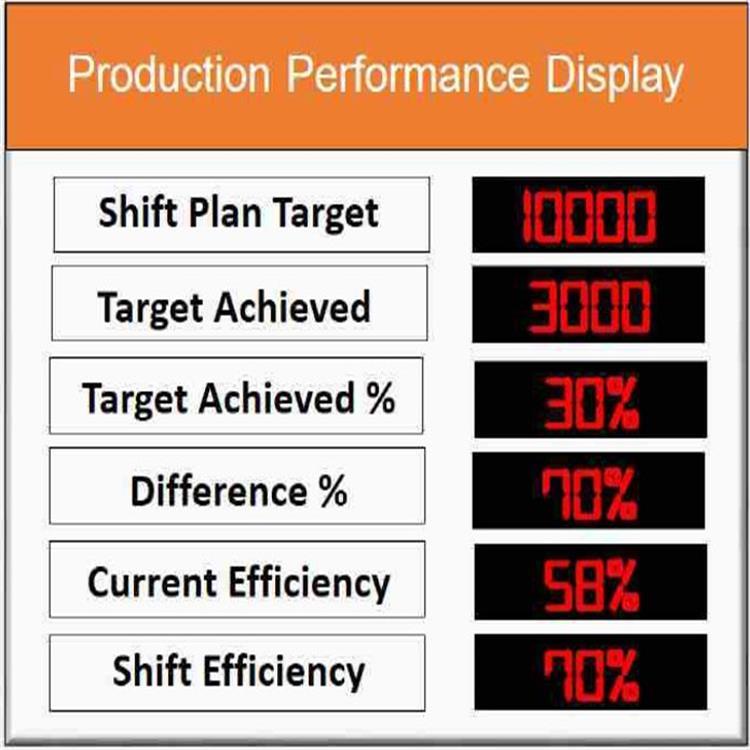

Production performance Display Board manufactured by us have a programmable set point, which when the number of count reaches the production sequence by switching motor / conveyor to, a relay is operated. This can be used to alert the operator or automate the production sequence by switching motor / conveyor on / off etc.

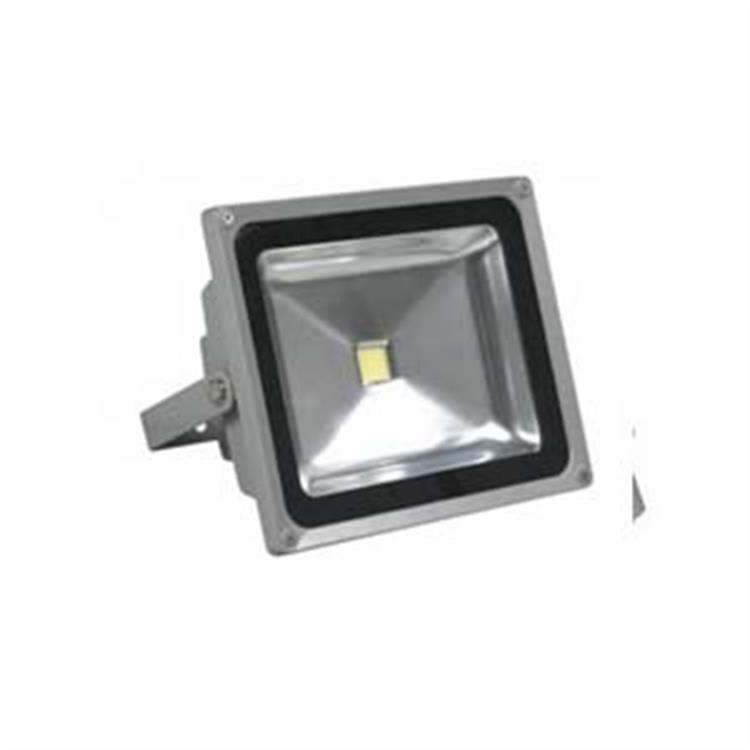

A floodlight is a broad-beamed, high-intensity artificial light. They are often used to illuminate outdoor playing fields while an outdoor sports event is being held during low-light conditions.

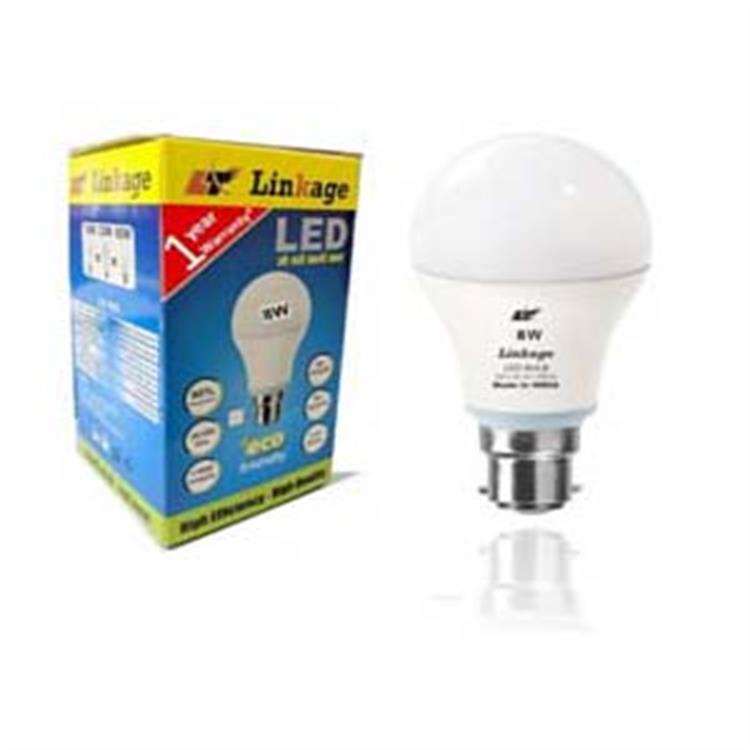

LED light bulb is a solid-state lighting (SSL) device that fits in standard screw-in connections but uses LEDs (light-emitting diodes) to produce light

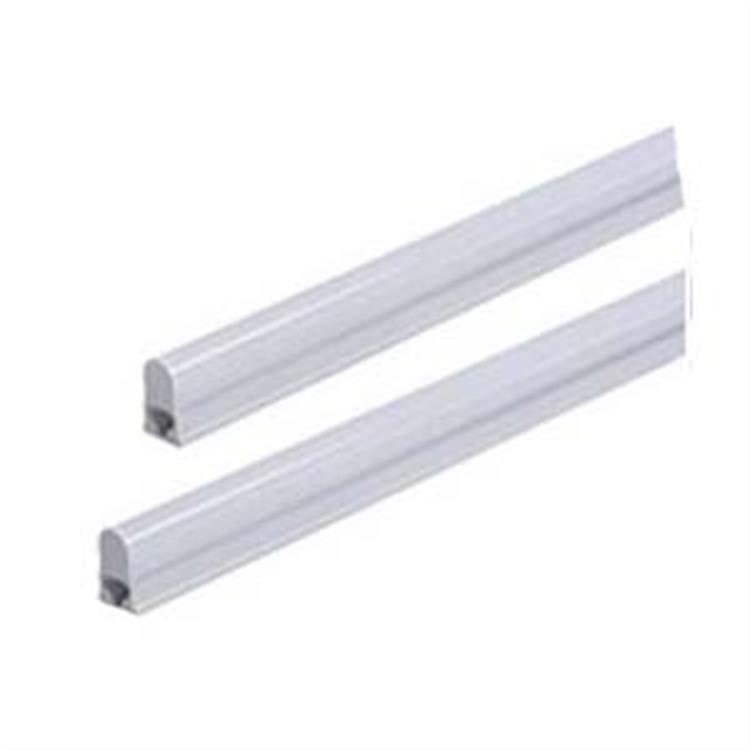

LED tube is a type of LED lamp the most important advantages of LED tubes are energy efficiency and long service life.
Solar street lights are raised light sources which are powered by solar panels generally mounted on the lighting structure or integrated into the pole itself. The solar panels charge a rechargeable battery, which powers a fluorescent or LED lamp during the night.

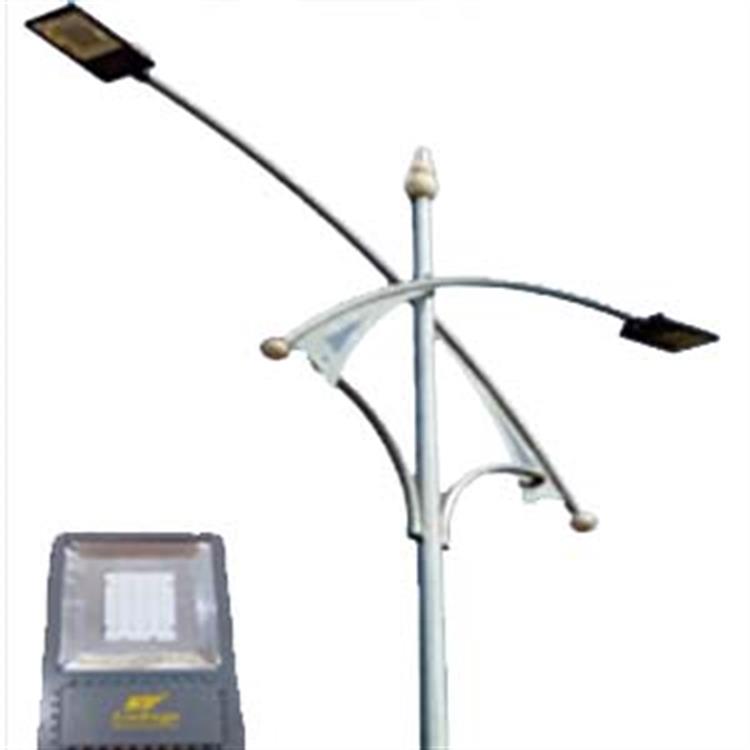

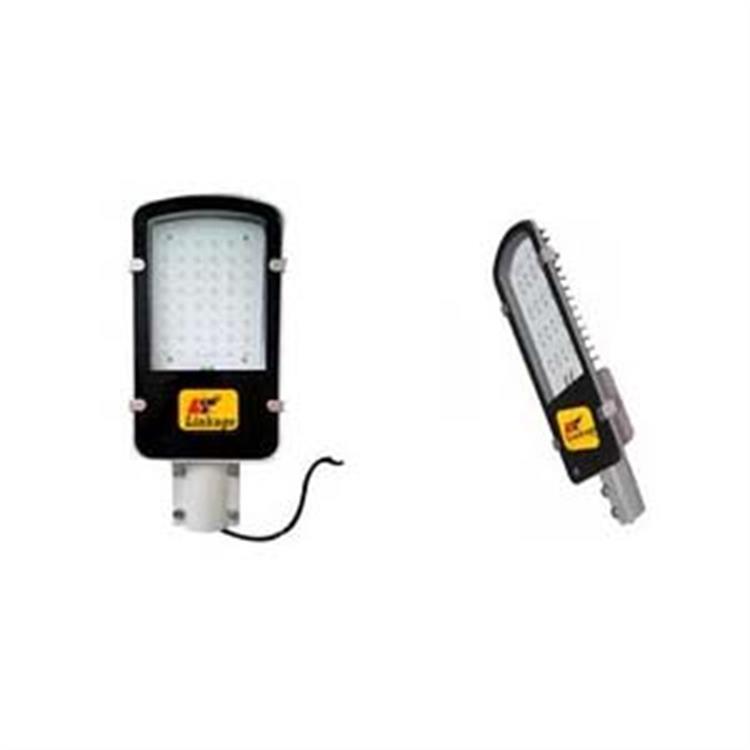

An LED street light is an integrated light that uses light emitting diodes (LED) as its light source. Either few high-power LEDs or many low-power LEDs may be used.

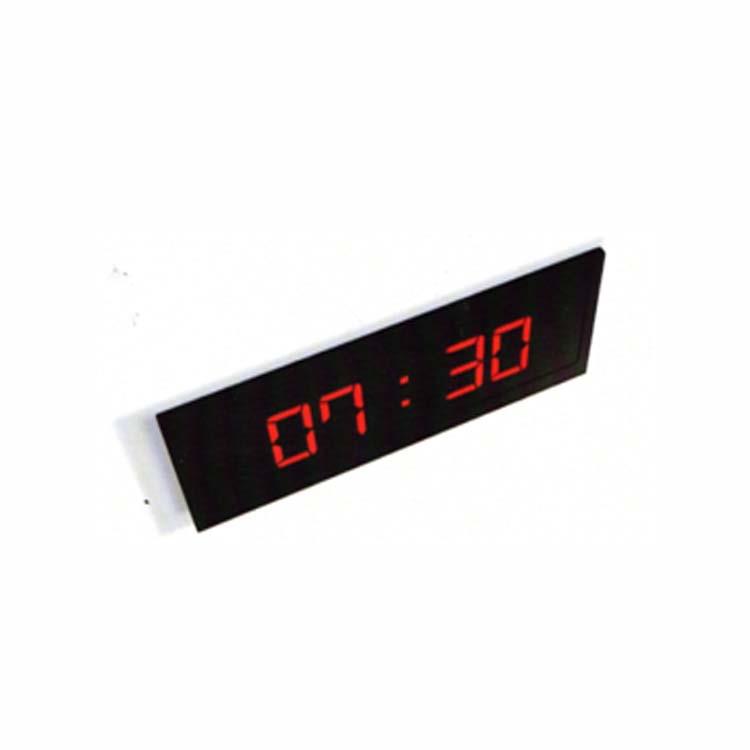

We offer GPS based digital clocks to eliminate the need for manual clock setting by giving error free & accurate results. Is an easy, cost effective solution for accurate, synchronized time displays without expensive, disruptive installation procedures.

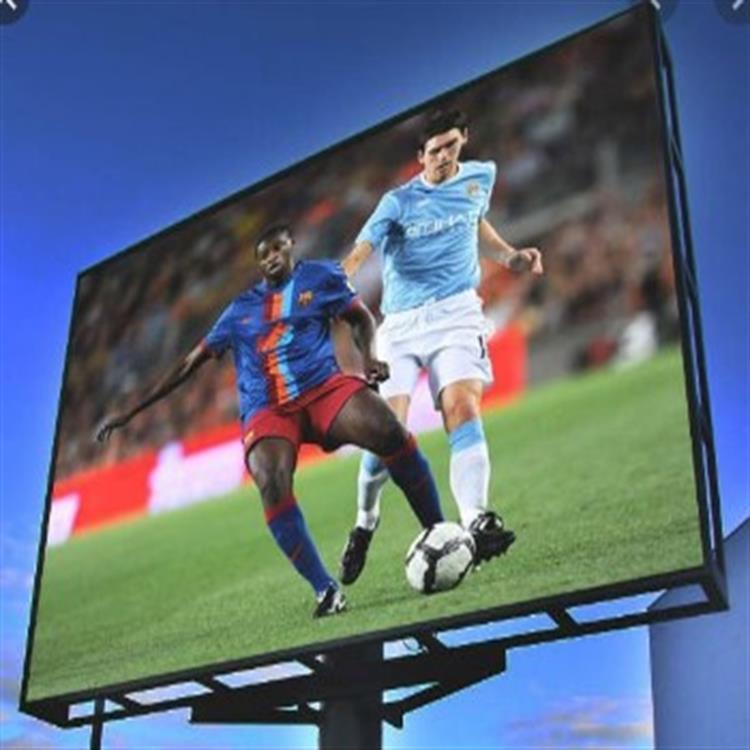

Multi Colour Multi Line LED display board is an Eye catching product which will help you to highlight your business in market place. The Text can be displayed in scrolling & static both the formats .It supports Multiple Language & font type.

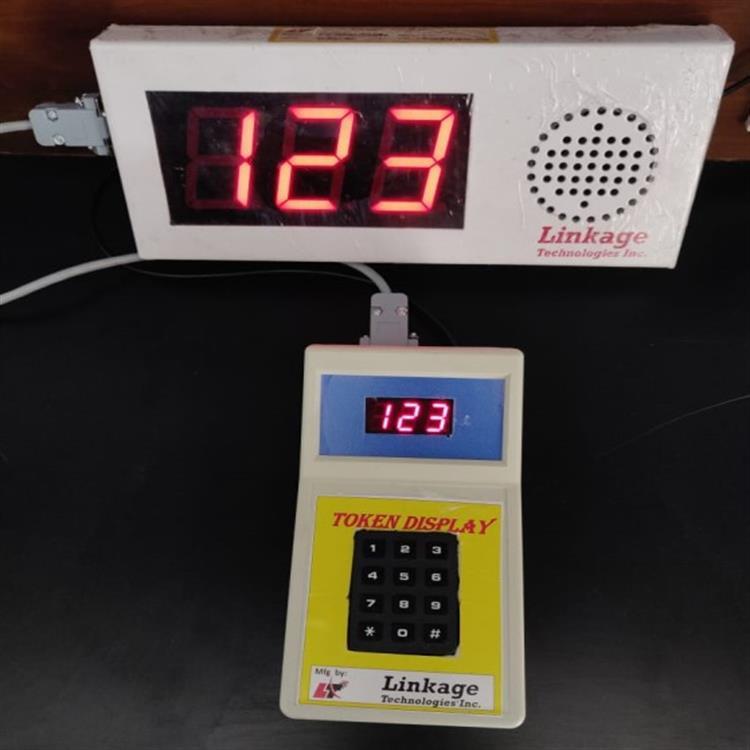

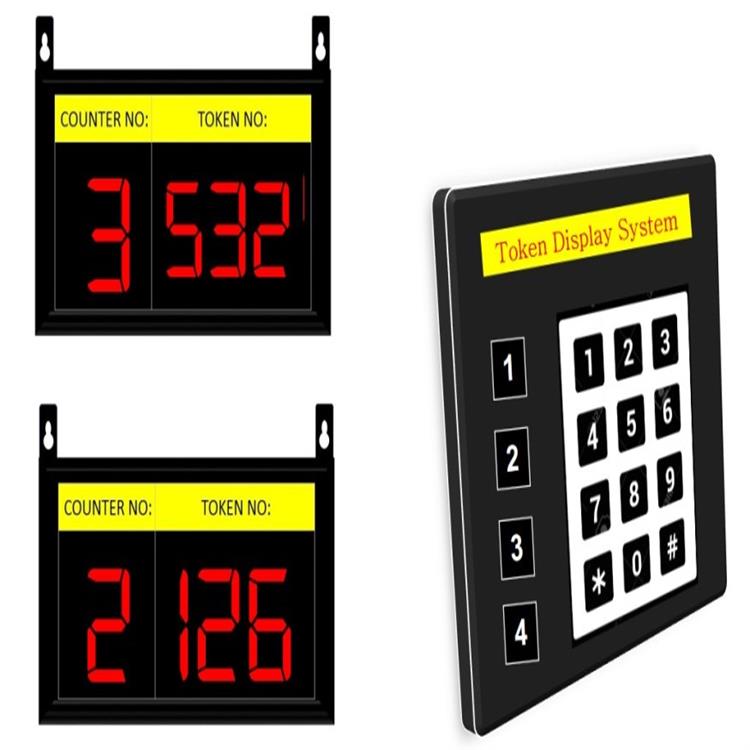

The system is effective to manage customer waiting lines & is ideal for places involving a waiting period.

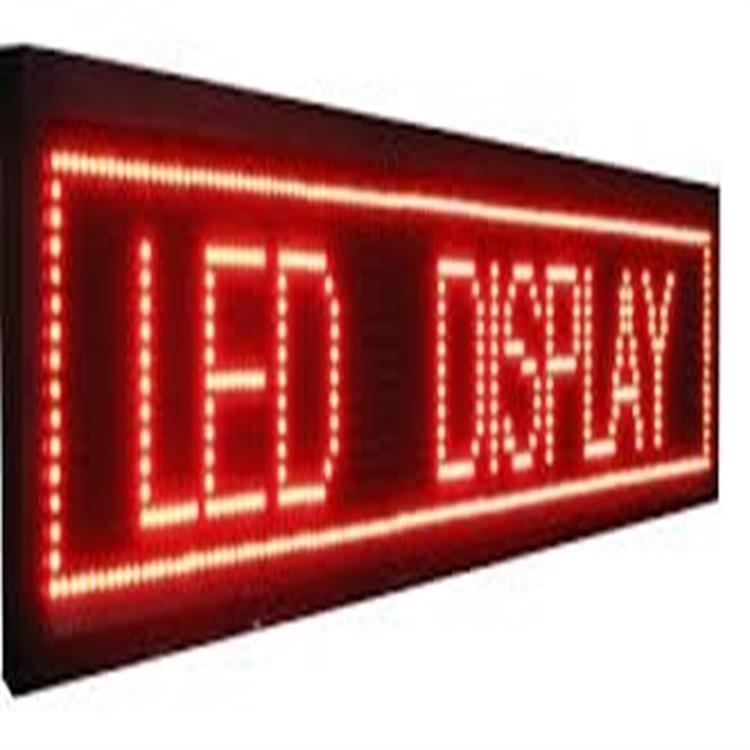

We have wide line of highly reliable, energy efficient, low maintenance and cost effective Single Color LED Display Board with prominently visible LED enabled moving messages boards used to display advertisements, statutory warning, sales messages, time etc., as per customers requirements.

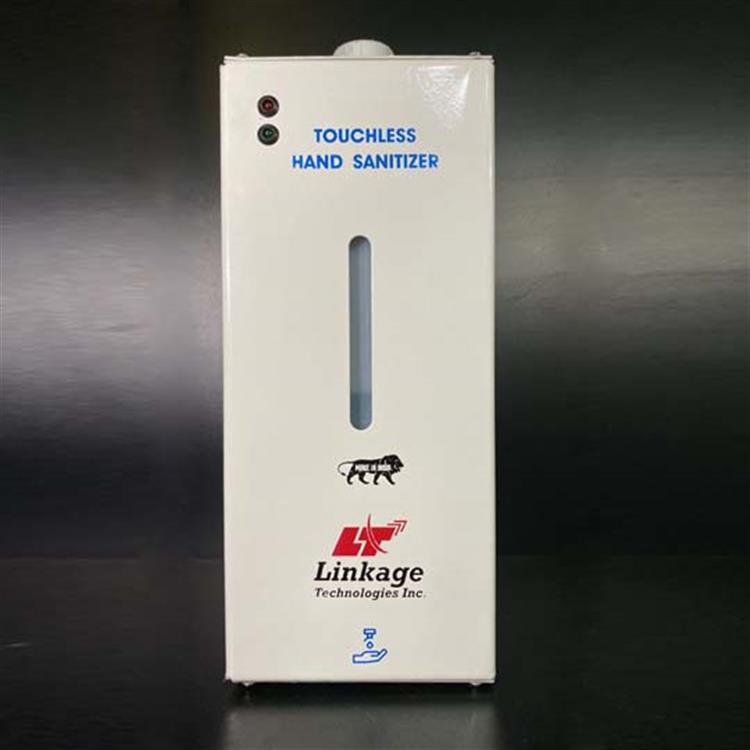

Touchless hand disinfection system with automatic sensor enables a quick and easy hand disinfection and eliminates contamination. The built-in bottle has a large capacity of 1000ml, which equals around 250 sprays. Reliable system with a long service life. Ergonomically designed and easy to install. A great hand hygiene solution for any public places.
Buy this @

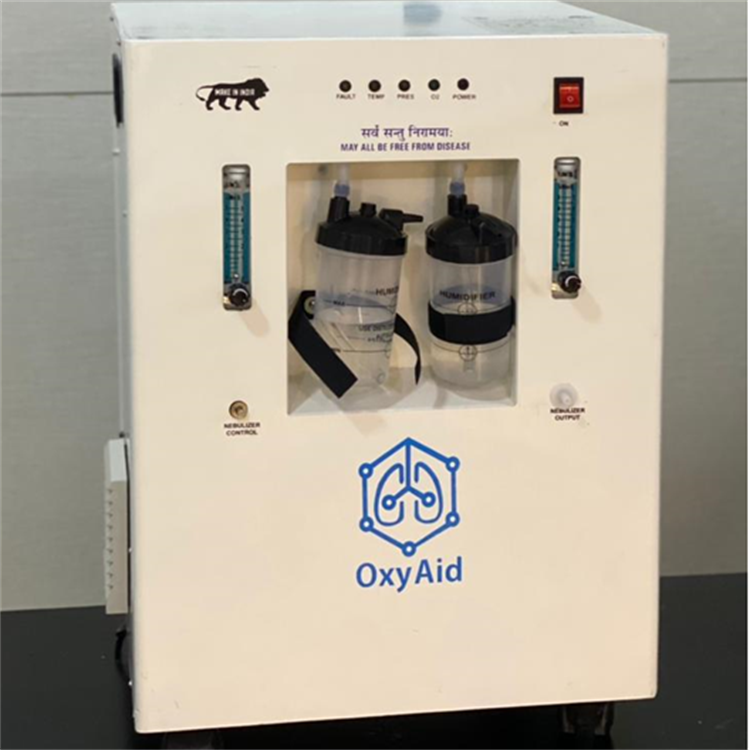

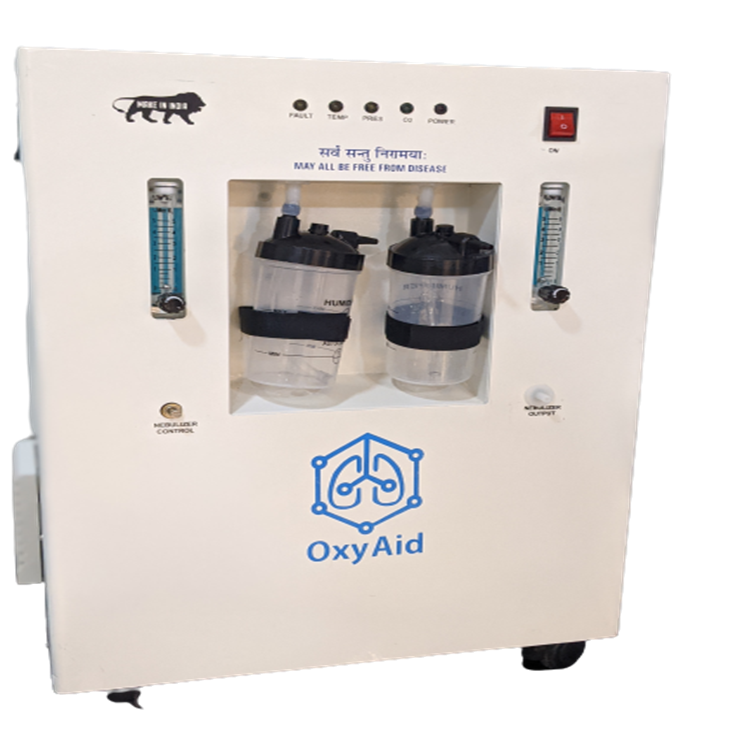

LT'S Oxygen Concentrator is an absolutely efficient and reliable way to get the high-purity quality oxygen. It has a reliable filtration system and a convenient inhalation method. LT Oxygen Concentrator is an absolutely efficient and reliable way to get the high-purity quality oxygen. It has a reliable filtration system and a convenient inhalation method. The device is avaialble in 5,10 LPM variants.
Brand
Linkage Technologies
Product Name
OxyAid 10L
Model
LTOC-10
Oxygen Flow Rate
10 LPM
Oxygen Concentration
93% - 82%
Outlet Channel
Two
Maximum Output Flow
Oxygen Outlet Pressure
8.00 psi
Sound Level
<=60 dB (A)
Alarm available
Compressor, Power Failure Alarm
Input Voltage
220 V AC +/- 10%
Frequency
50 Hz
Power Consumption
850 VA
Temperature
10 ?C to 35 ?C
Relative Humidity
30 % - 75% ( Non Condensing )
Atmospheric Pressure
10.00 psi – 15 psi
Temperature (Transportation)
-20 ?C to 60 ?C
Relative Humidity (Transportation)
30 % - 75% ( Non Condensing)
Atmospheric Pressure (Transportation)
Nasal Canula with Tube
2 Sets
Humidifier Bottle
2 Nos.
Operating Manual
1 No.
Enclosure
MS Powder Coated
Warranty
1 Yr from the date of Supply
LT Oxygen Concentrator is an absolutely efficient and reliable way to get the highpurity quality oxygen. It is portable dual flow medical device designed to produce the high oxygen concentration required for oxygen therapy on a supplement basis.
10LPM
96% - 82%
15psi
230 V AC +/- 10%
550VA
15.00 psi – 15 psi
15 psi – 15 psi
LTOC-5
5LPM
One
5 LPM

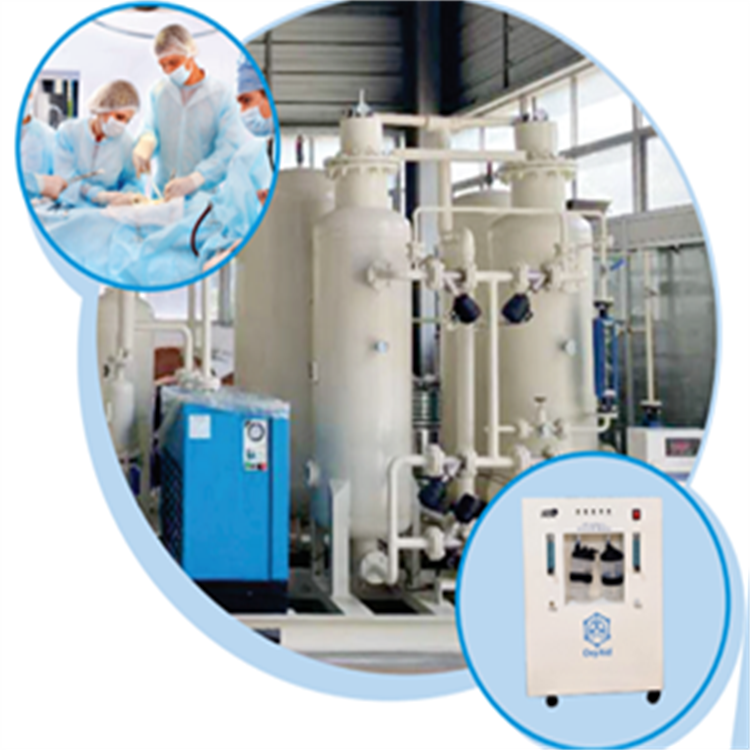

Oxygen is one of the keys to the abundance of life on Earth and is plentiful in the gaseous form in our atmosphere at a concentration of approximately 21%. However, the need for oxygen in a purer form has increased tremendously with the rise of new manufacturing processes and medical applications. Medical applications mainly involve surgical procedures, ambulatory use, and COPD (Chronic Obstructive Pulmonary Disease) patients who require a purer form of oxygen to breathe than what is present in atmosphere. Production of oxygen through air separation is made possible by passing air over an adsorbent that is selective for nitrogen molecules over oxygen molecules to produce pure oxygen at the exit. Once the adsorbent in a column is saturated with nitrogen molecules, it needs to be cleaned so that it can be reused. This makes the process of adsorption dynamic. This process is known as Pressure Swing Adsorption (PSA) that perform air separation to achieve oxygen Concentration 90% and above. The purity of Oxygen depends on the type of adsorbent (Zeolite) used, process efficiency, and the external environmental factor like atmospheric pressure, temperature relative humidity & altitude. all the parameter have a great impact on the oxygen purification process of the PSA System.
download file

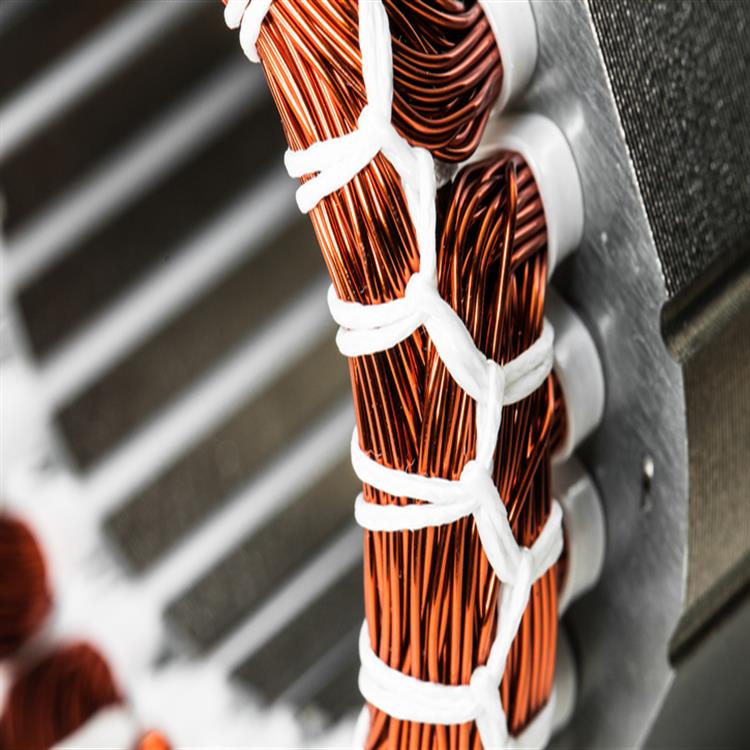

Electrical Vehicles (EVs) use various types of motors depending on their propulsion system. BLDC (Brushless Direct Current) Motors are the new age technological advancement in this field and is the core component of any EV.
